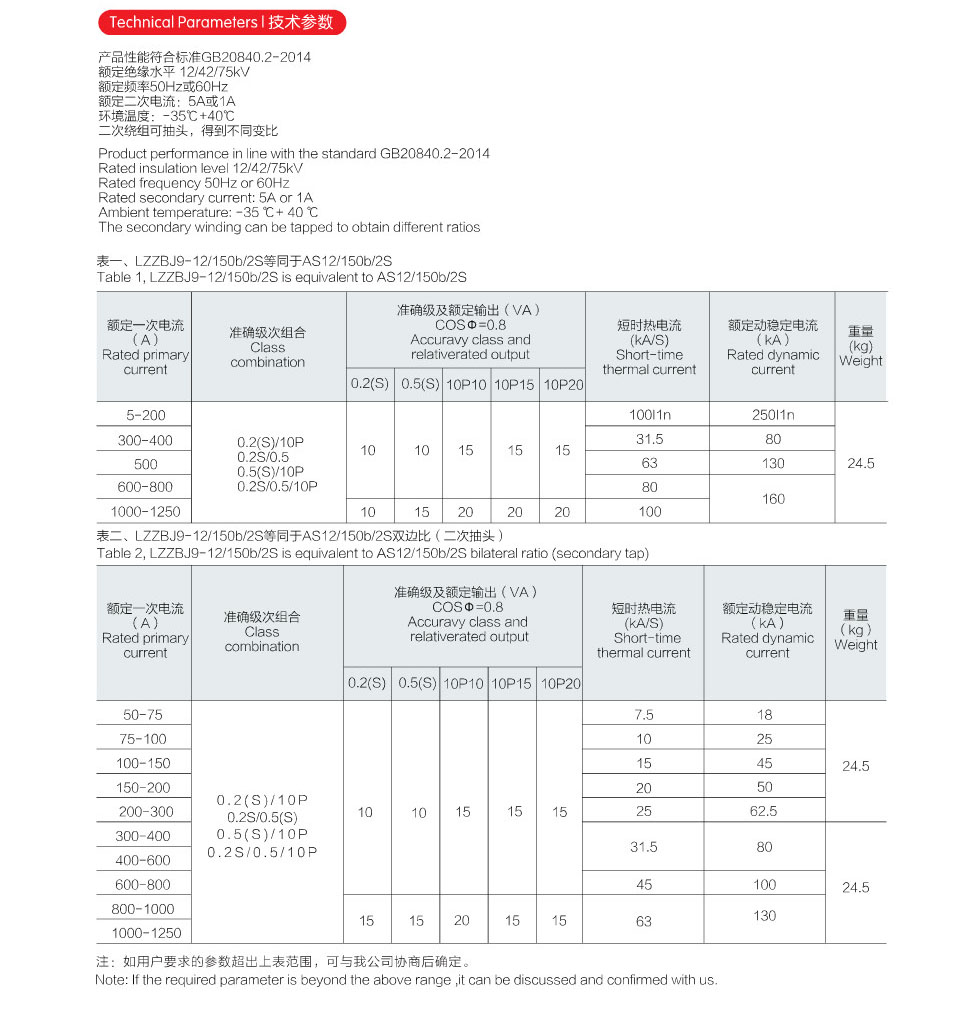

一、技术参数
产品性能符合标准GB20840.2-2014
额定绝缘水平12/42/75kV
额定频率50Hz60Hz
额定二次电流:5A或1A
环境温度:-35℃+40℃
二次绕组可抽头,得到不同变比
Product performance in line with the standard GB20840.2-2014
Rated insulation level 12/42/75kV
Rated frequency 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -35 ℃+ 40℃
The secondary winding can be tapped to obtain different ratios
表一、LZZBJ9-12/150b/2S等同于AS12/150b/2s
Table 1,LZZBJ9-12/150b/2S is equivalent to AS12/150b/2S
|
额定一次电流 (A）
Rated primary current
|
准确级次组合
Class combination
|
准确级及额定输出(VA)
COSΦ=0.8 Accuravy class and relativerated output
|
短时热电流 (kA/S)
Short-time thermal current
|
额定动稳定电流 (kA)
Rated dynamic current
|
重量(kg)
weight
|
|
0.2(S)
|
0.5(S)
|
10P10
|
10P15
|
10P20
|
|
5-200
|
0.2(S）/10P 0.2(S）/5 0.5(S）/10P 0.2S/0.5/10P
|
10
|
10
|
15
|
15
|
15
|
100l1n
|
250l1n
|
24.5
|
|
300-400
|
31.5
|
80
|
|
500
|
63
|
130
|
|
600-800
|
80
|
160
|
|
1000-1250
|
10
|
15
|
20
|
20
|
20
|
100
|
表二、LZZBJ9-12/150b/2S等同于AS12/150b/2S双边比(二次抽头）
Table 2,LZZBJ9-12/150b/2S is equivalent to AS12/150b/2S bilateral ratio (secondary tap)
|
额定一次电流 (A）
Rated primary current
|
准确级次组合
Class combination
|
准确级及额定输出(VA)
COSΦ=0.8 Accuravy class and relativerated output
|
短时热电流 (kA/S)
Short-time thermal current
|
额定动稳定电流 (kA)
Rated dynamic current
|
重量(kg)
weight
|
|
0.2(S)
|
0.5(S)
|
10P10
|
10P15
|
10P20
|
|
50-75
|
0.2(S)/10P 0.2S/0.5(S) 0.5(S)/10P 0.2S/0.5/10P
|
10
|
10
|
15
|
15
|
15
|
7.5
|
18
|
24.5
|
|
75-100
|
10
|
25
|
|
100-150
|
15
|
45
|
|
150-200
|
20
|
50
|
|
200-300
|
25
|
62.5
|
|
300-400
|
31.5
|
80
|
24.5
|
|
400-600
|
|
600-800
|
45
|
100
|
|
800-1000
|
15
|
15
|
20
|
15
|
15
|
63
|
130
|
|
1000-1250
|
注:如用户要求的参数超出上表范围,可与我公司协商后确定。
Note: If the required parameter is beyond the above range ,it can be discussed and contimed with us.
